SBOM CI/CD Automation. A Reference Architecture That Stays Accurate.

If your SBOM program relies on someone “remembering to generate a file,” you don’t have an SBOM program. You have a recurring fire drill.

CI/CD automation is where SBOMs stop being paperwork and start behaving like a control system: generated per build, bound to releases, validated by policy, stored with version history, and ready to share with proof.

Exodos Labs is built for exactly this mode of operation: CI/CD pipeline integration for automated SBOM ingestion, a centralized SBOM repository with version control, automated quality validation against NTIA + custom policies, plus ABAC, redaction, and immutable audit trails for secure exchange and evidence.

This post gives you a practical reference architecture (with patterns and failure modes) you can implement in weeks, not quarters.

The goal: SBOMs that match what shipped

A CI/CD SBOM pipeline must answer one question reliably:

“Does this SBOM correspond to the exact artifact we shipped?”

If the answer is “probably,” audits and incident response will hurt.

Your automation should create four outcomes, every release:

1. Release binding (build ID, commit, artifact digest)
2. Quality gate outcome (pass/fail + reasons)
3. Versioned storage (history retained, diffable)
4. Evidence trail (who generated, validated, shared, and when)

Exodos Labs explicitly emphasizes “native CI/CD integration” so SBOM generation/updates stay synchronized with build and deployment, keeping you “always up-to-date and audit-ready.”

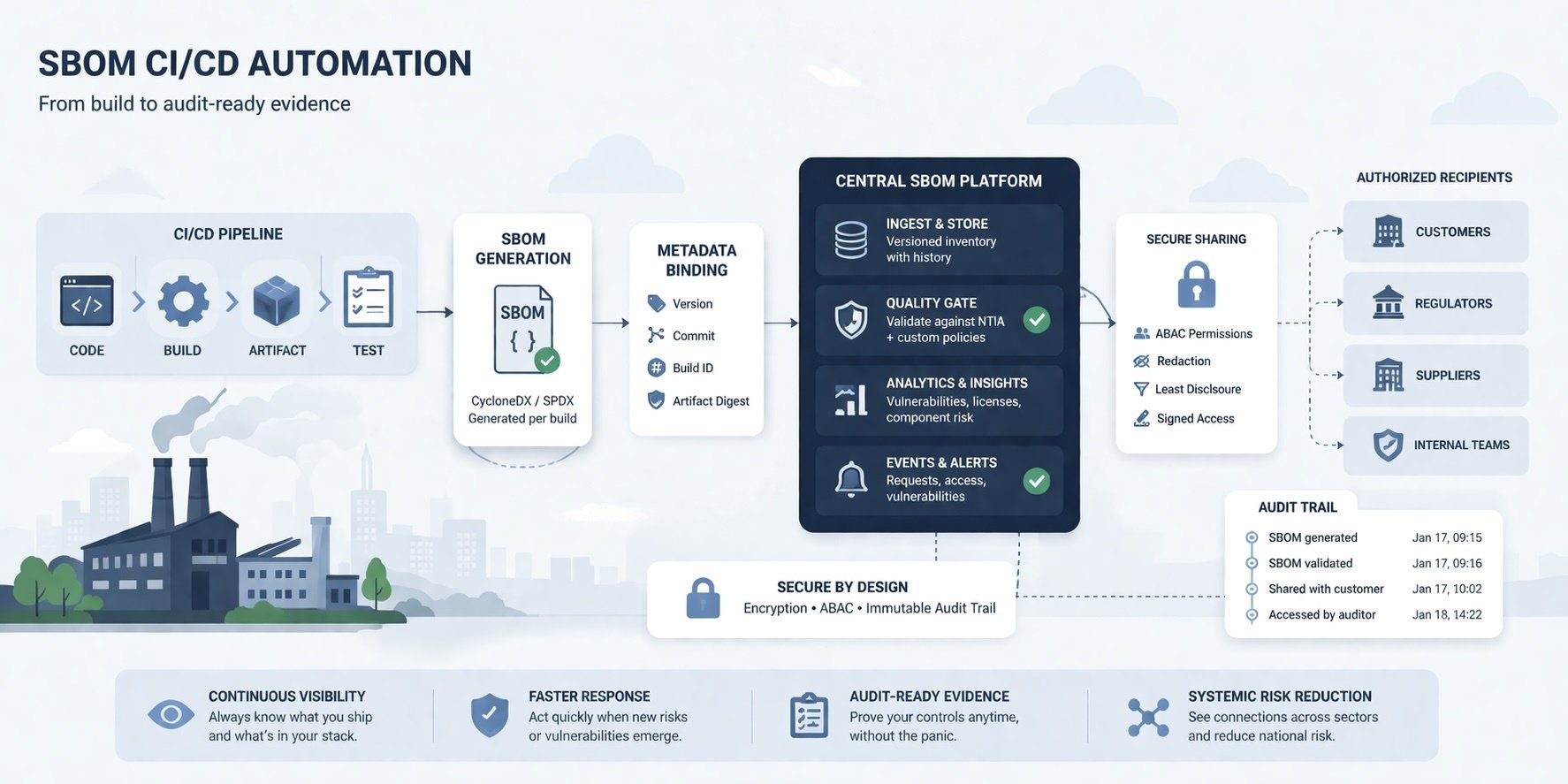

Reference architecture: the minimum moving parts

You don’t need 12 systems. You need a clean flow.

Components

1. SBOM generator(s) Tooling in pipeline to generate SBOM(s) for your build type (source, binary, container image).
2. Metadata binder A simple step that attaches release metadata (version, commit, build ID, artifact digest).
3. Ingestion endpoint API/webhook that accepts SBOM + metadata and stores it centrally. Exodos is API-first and supports CI/CD ingestion.
4. Quality gate / policy engine Automated validation against minimum requirements + your custom policies. Exodos supports automated SBOM quality validation against NTIA and custom policies.
5. Inventory + version history A central repository with version control/change tracking and “one pane of glass.”
6. Events + workflow outputs Notifications to ticketing/chat when SBOM requests arrive, access is granted, or a gate fails. Exodos supports notifications/alerts and event-driven workflows via webhooks/integrations.
7. Secure sharing + evidence ABAC + redaction + immutable audit trails for inter-company exchange and auditability.

Where SBOM generation belongs (3 patterns)

Most teams need more than one SBOM per release. Pick the pattern that matches what you ship.

Pattern A: Source SBOM + Image SBOM (most common)

• Source SBOM: captures application dependencies (package managers, build system)
• Image SBOM: captures container layers + OS packages

Why it matters: many vulns live in OS packages or base images, not your app deps.

Pattern B: Binary SBOM (when you ship binaries/firmware)

• Generate SBOM from build outputs and dependency manifests
• Add strong release binding (hashes/digests)

Pattern C: Service-per-SBOM (microservices)

• One SBOM per service per version
• Aggregate view at product level in inventory

Exodos’ “hierarchical inventory structure” and “versioning and change tracking” map well to multi-service realities.

The CI/CD flow (step-by-step)

Here’s a practical flow that works whether you use GitHub Actions, GitLab, Jenkins, or Azure DevOps.

Step 0: Standardize your contract

Decide (and document):

• accepted formats (SPDX/CycloneDX)
• what “release binding” fields you require
• what’s a hard fail vs soft fail in the quality gate

(If you did the last post on acceptance criteria, this is where it becomes real.)

Step 1: Generate SBOM(s)

Generate SBOMs as close to the build as possible:

• after dependency resolution
• after container image is built (if applicable)

Step 2: Bind metadata

Attach:

• product/service name
• version tag
• commit SHA
• build ID
• artifact digest (image digest, binary hash)

Step 3: Ingest to a central system

Upload SBOM + metadata into a centralized inventory so it’s queryable, versioned, and shareable. Exodos supports automated ingestion from CI/CD pipelines into a centralized repository with version control.

Step 4: Run the quality gate

Validate automatically:

• schema validity
• required fields
• identifier quality
• completeness/scope rules
• your org’s acceptance criteria

Exodos supports automated quality validation against NTIA + custom policies (quality gates).

Step 5: Decide what happens on fail

Two sane options:

• Block release (regulated/high-risk products): hard-fail gate blocks deploy
• Ship with an exception (early maturity): ship, but automatically create a ticket + time-boxed remediation

Whatever you choose, make it consistent and auditable.

Step 6: Publish + share (controlled)

If a customer/regulator/supplier needs it:

• share via ABAC + redaction
• log access and sharing events

Exodos supports secure inter-company SBOM sharing with ABAC, redaction, and immutable audit trails.

Step 7: Monitor changes and risk

At minimum:

• diff SBOMs between releases
• alert on “new component added,” “license changed,” “SBOM missing,” and “new vuln affects our apps”

Exodos’ docs call out live updates/versioned SBOMs and notifications for key events like new vulnerabilities and SBOM request status changes.

A tiny example (GitHub Actions-style pseudocode)

# Pseudocode: generate SBOM, bind metadata, upload, gate
steps:
  - checkout
  - build
  - generate_sbom: syft packages dir:./ -o cyclonedx-json > sbom.json
  - bind_metadata:
      version: $GIT_TAG
      commit: $GITHUB_SHA
      build_id: $GITHUB_RUN_ID
      artifact_digest: $IMAGE_DIGEST
  - upload_to_inventory:
      endpoint: EXODOS_API
      file: sbom.json
      metadata: build_meta.json
  - quality_gate:
      policy: "prod-minimum"
      on_fail: "block"   # or "ticket"

(Use whatever SBOM tooling fits your stack. Тhe architecture is the point.)

The 8 failure modes that quietly break SBOM automation

1. SBOM generated, but not bound to the artifact (no digest/build ID)
2. SBOM stored in the repo (not inventory) → hard to query/share/audit
3. Gate runs, but results aren’t stored → no proof of operation
4. Pipeline generates SBOM before final dependencies are resolved
5. No handling for exceptions → every fail becomes a debate
6. No version history → you can’t diff, detect drift, or prove “per release” operation
7. Sharing via email attachments → chain-of-custody evaporates
8. No events/alerts → failures silently accumulate until audit day

Exodos’ emphasis on a centralized repository with versioning, quality gates, secure sharing controls, and immutable audit trails is basically a direct antidote to these failure modes.

A 30-day rollout plan (practical)

Week 1: Pick one product line + one pipeline. Define acceptance criteria v0.1.

Week 2: Generate SBOM per build and ingest centrally with release binding.

Week 3: Turn on quality gate (start in “warn/ticket” mode if needed).

Week 4: Enable controlled sharing + export your first audit packet sample.

Track 3 metrics:

• Coverage (% of releases with SBOMs)
• Freshness (age since last update)
• Pass rate (quality gate pass/fail + top failure reasons) These are also suggested success metrics in Exodos’ operating-model materials.
